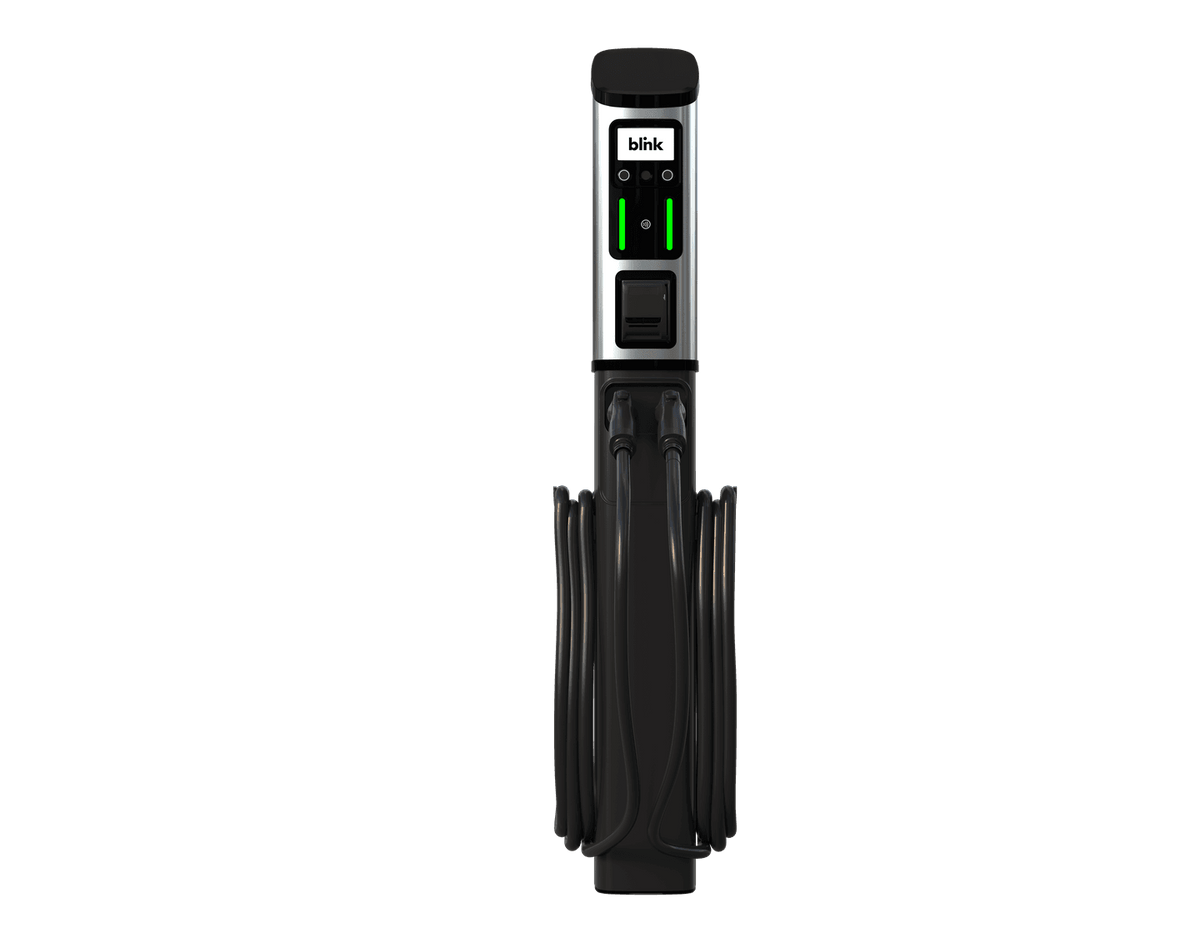

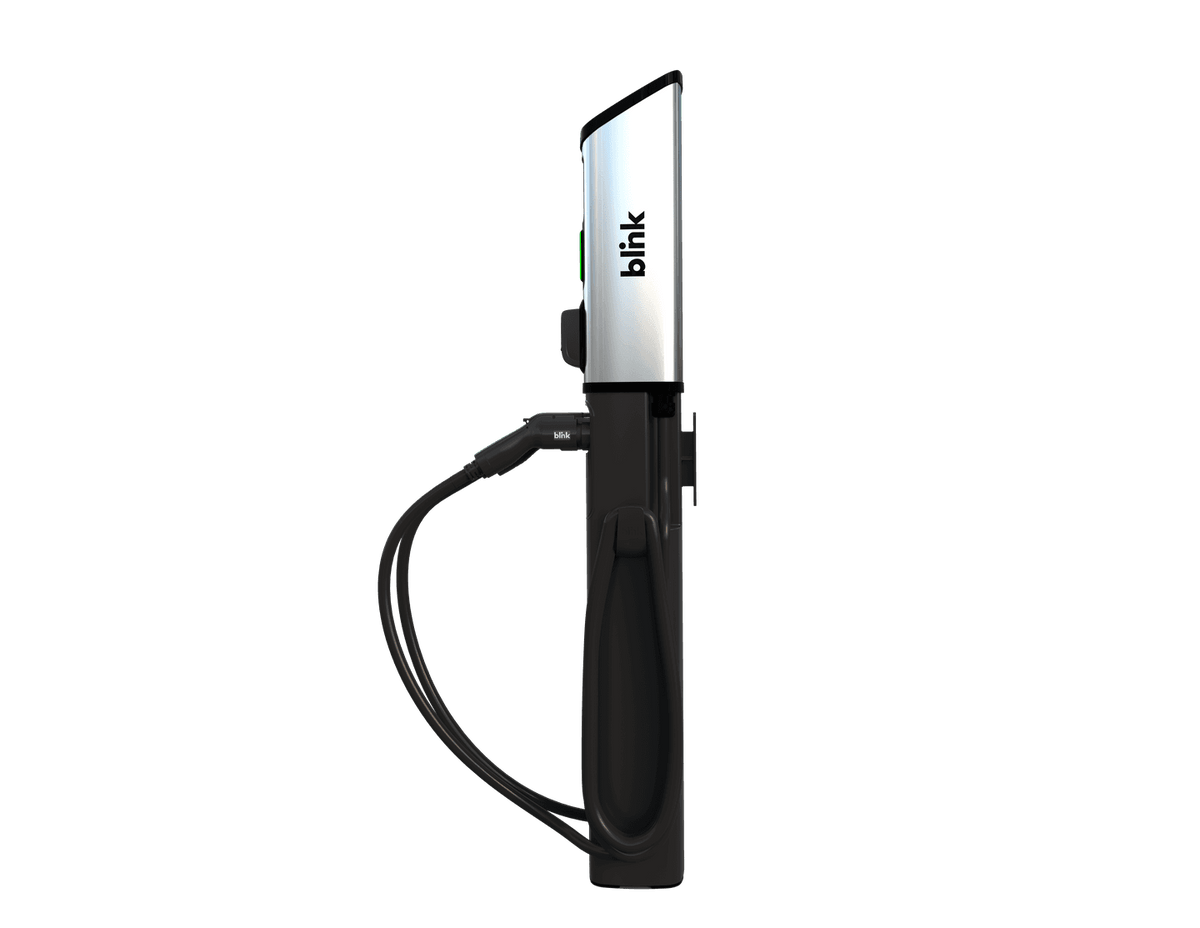

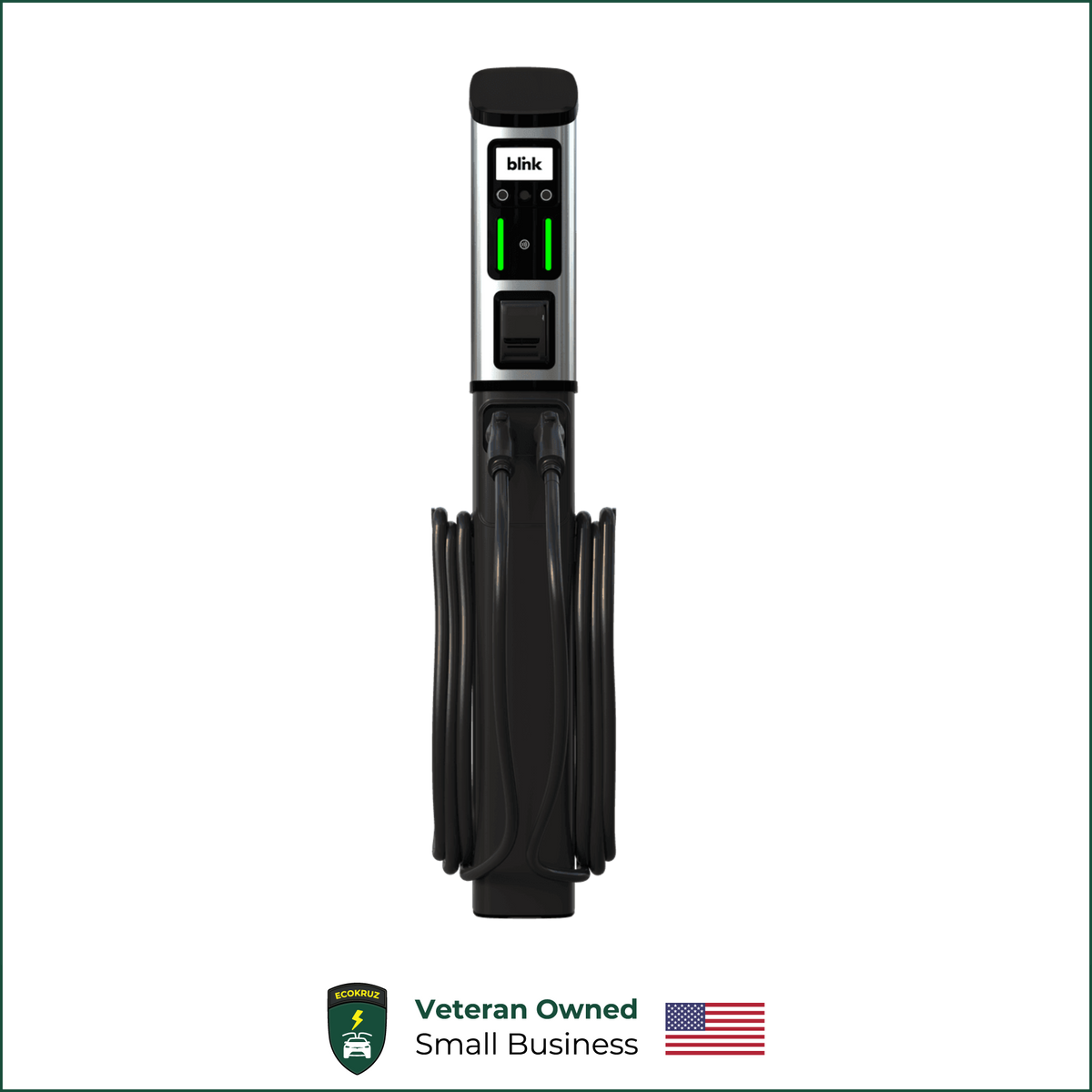

BLINK Series 8 (ISO Model) Level 2 Commercial EV Charging Station 80A Dual Port w/ One Year Full Service LTE Cloud & CC & Pedestal Bundle

Enhance your business’s EV charging infrastructure with the versatile Blink Series 8 ISO EV Charging Station. Designed for commercial environments, this advanced Level 2 EV charger combines adjustable charging power, integrated credit card payment capability, multiple connectivity options, and ISO 15118 hardware readiness to support a wide range of electric vehicle charging applications.

The Blink Series 8 ISO is particularly well suited for locations where EV drivers are likely to pay by credit card or use Tap to Pay. Its commercial-ready design makes it an excellent solution for shopping malls, hospitals, municipal parking facilities, retail locations, and other public or commercial EV charging sites.

The dual-port model allows two vehicles to charge from one charging station. Please inquire about single-port availability.

Key Features

• Integrated Credit Card Reader — Designed for commercial applications where convenient on-site EV charging payments are required.
• Tap to Pay Ready — Suitable for applications requiring a credit card reader and/or contactless Tap to Pay functionality.
• Adjustable Charging Power — Configurable up to 80A maximum using the built-in derating switch.
• ISO 15118 Hardware Ready — Designed with hardware readiness for ISO 15118 capabilities.
• Dual-Port Configuration — Supports charging applications requiring two charging ports. Please inquire about single-port models.
• Universal J1772 & NACS Connectors — Provides broad compatibility with electric vehicles and plug-in electric hybrid vehicles.*
• Rugged Aluminum Enclosure — Durable enclosure designed for demanding commercial charging environments.
• Multiple Connectivity Options — Supports seamless data communication through Wi-Fi, built-in Ethernet, and 4G LTE cellular connectivity.
• Compact, Modern Design — Sleek footprint integrates well into a variety of commercial environments.

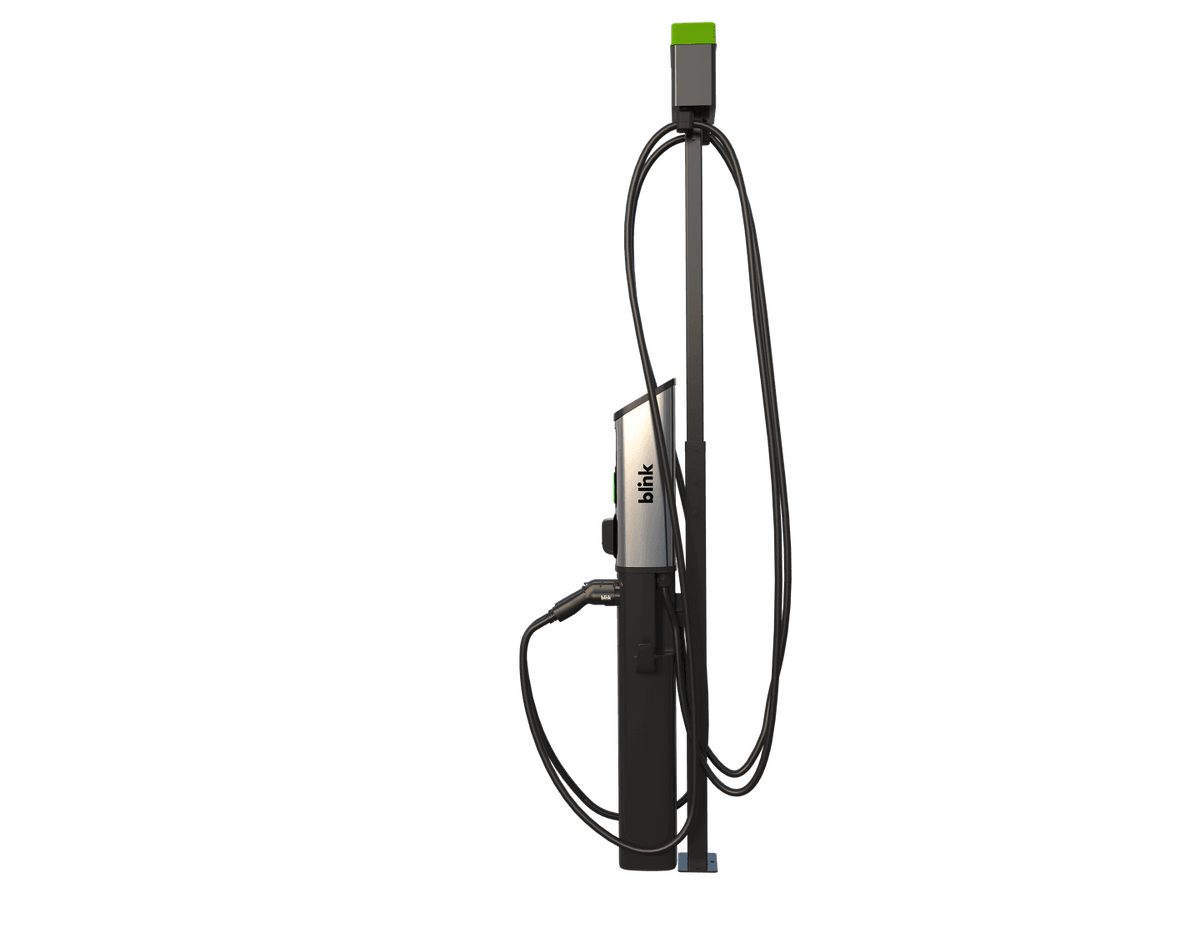

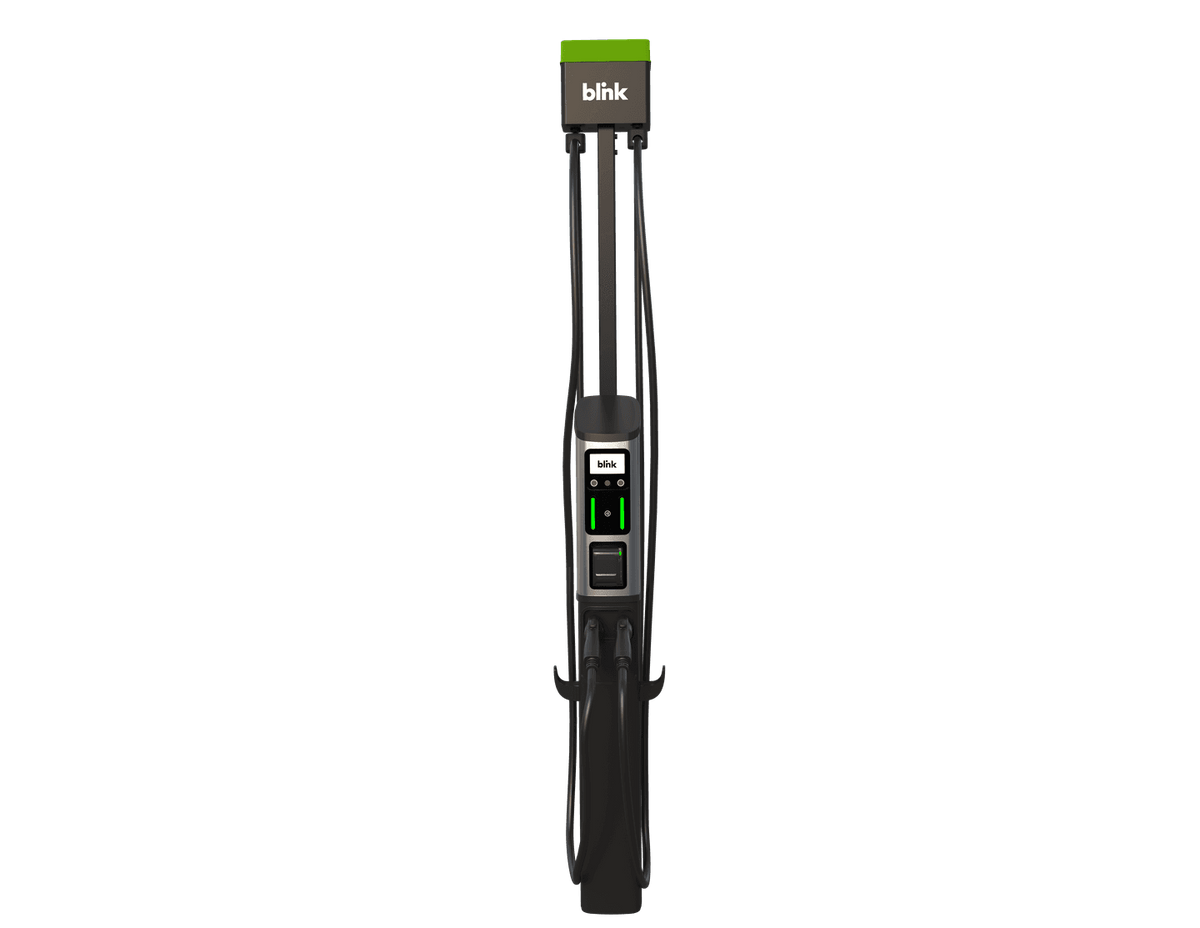

• Optional Cable Management — An optional cable management system is available for an organized charging area.
• Enhanced Terminal Block — New terminal block supports #2 AWG input cabling for simplified installation.

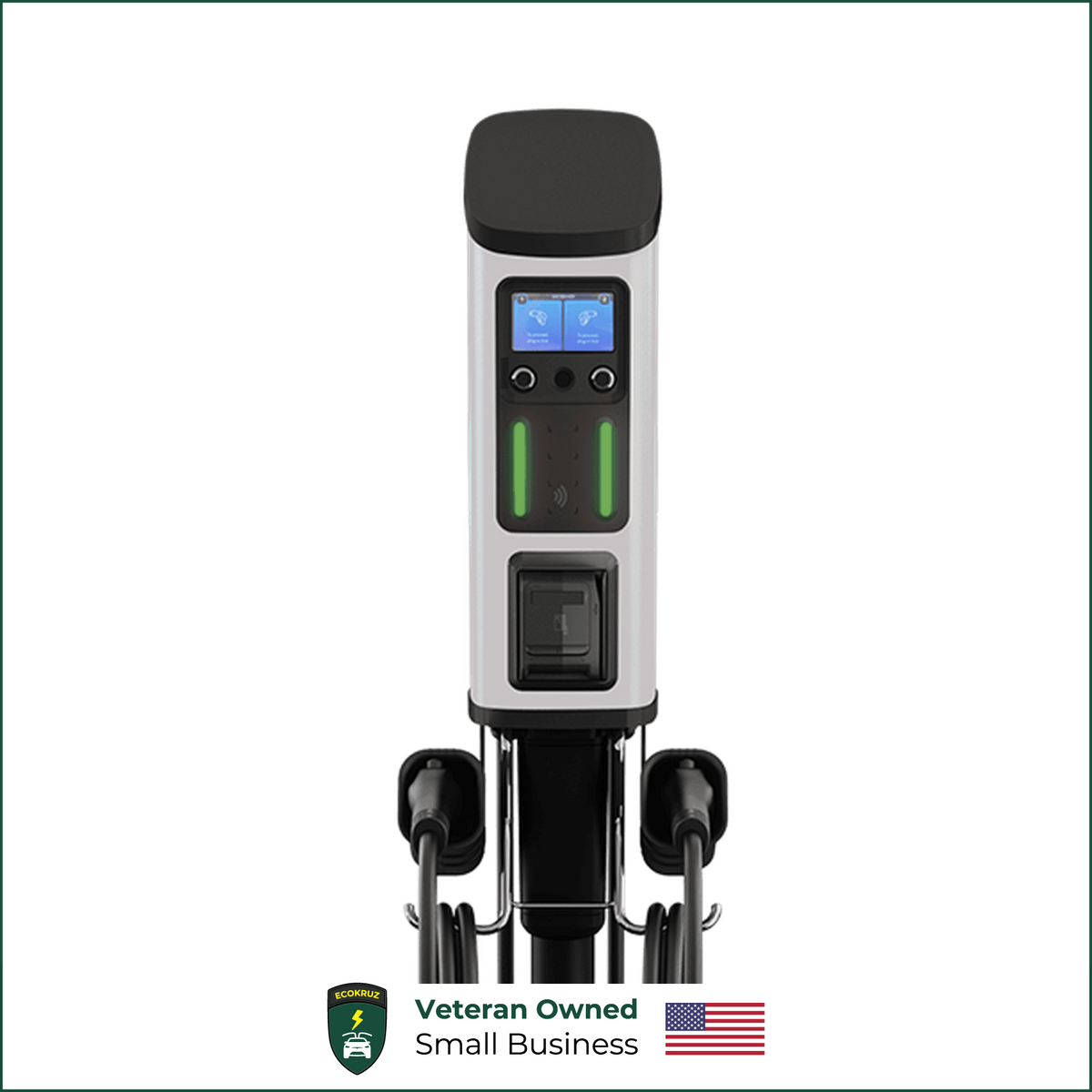

• LCD Display — Easy-to-read LCD screen provides clear charging session information.
• LED Status Indicators — Bright status lights make charging and station status easy to identify.
• Flexible Mounting Options — Available with pedestal or wall-mount installation.
• Base Pedestal Included — This package includes a standard base pedestal. Please inquire about cable-management pedestal options.

Ideal Commercial Applications

The Blink Series 8 ISO is designed for a wide variety of commercial EV charging applications, including:

• Shopping malls
• Hospitals and healthcare facilities
• Municipal parking facilities
• Retail locations
• Commercial parking areas
• Public EV charging stations
• Businesses offering EV charging to customers, employees, or visitors

Technical Highlights

Commercial EV Charging Built for Flexibility

The Blink Series 8 ISO commercial EV charger delivers the combination of payment flexibility, connectivity, vehicle compatibility, and installation options businesses need when deploying EV charging infrastructure. With J1772 and NACS connectors, up to 80A configurable output, credit card and Tap to Pay capabilities, Wi-Fi, Ethernet, 4G LTE, and ISO 15118 hardware readiness, the Series 8 ISO is built to support evolving commercial EV charging needs.

Service & Pedestal Options

One year of full service is included with this package. Optional 3-year and 5-year extended service plans are available—please inquire for details.

A base pedestal is also included with this package. If you require a cable-management pedestal, please inquire about available options.

* Compatible with electric and plug-in electric hybrid vehicles using the applicable J1772 or NACS charging connection.
