EV Chargers and Pedestals

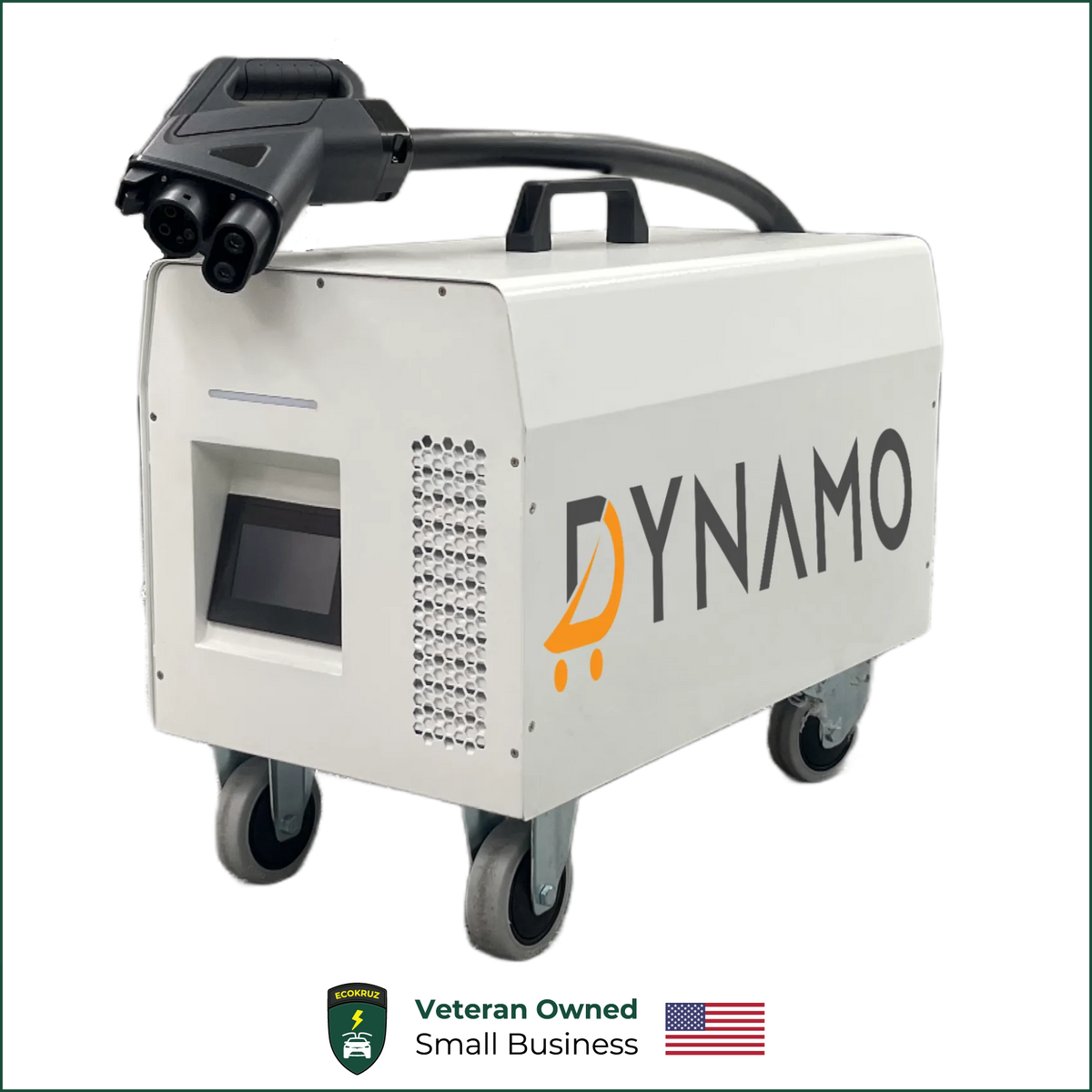

Dynamo 20kW - 40kW Battery Pack Portable Shop portable DC Fast Charger
Dynamo 20kW - 40kW Battery Pack Portable Shop portable DC Fast Charger
Couldn't load pickup availability
Share
Bring commercial-grade EV charging wherever it’s needed with the DYNAMO Portable Shop DC Fast Charger. Designed for automotive service environments, DYNAMO combines up to 40kW of DC fast charging power with a compact, wheeled design that eliminates the need for permanent charging infrastructure.

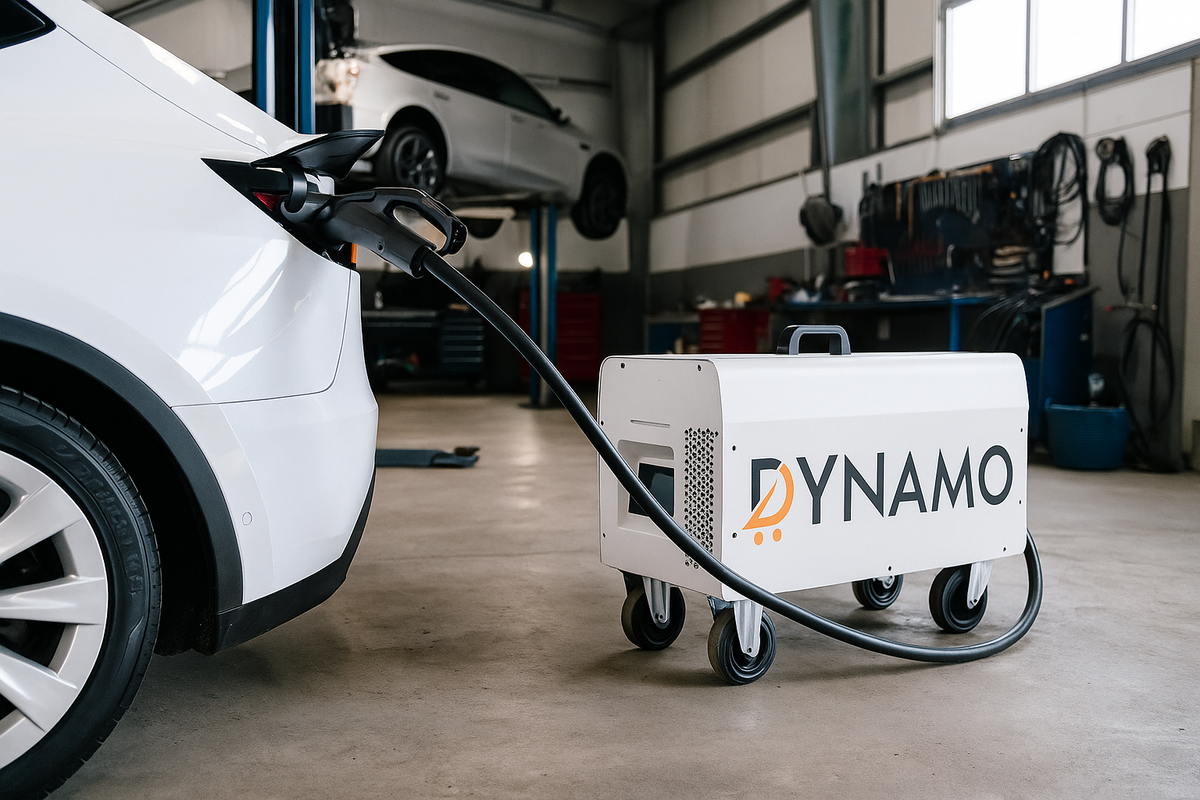

Simply roll the charger into the service bay, connect the power cable, and start charging. When the job is complete, disconnect it and move it to the next vehicle. No permanent installation required.
Purpose-built for EV repair shops, service bays, fleet maintenance facilities, dealerships, and rental operations, DYNAMO provides a flexible way to keep electric vehicles charged during diagnostics, maintenance, repairs, and vehicle turnover.
Up to 40kW | Wheeled & Portable | DC Fast Charging
Deploy DC Fast Charging Anywhere You Need It
Mechanic Shops & EV Service Centers
Charge electric vehicles directly in service bays to support EV diagnostics, repairs, maintenance, and faster vehicle turnover without installing a permanent DC fast charger in every bay.
Fleet Maintenance Facilities
Keep fleet EVs charged during routine maintenance and service operations, helping vehicles stay ready for their next assignment.
Dealership Service Departments
Charge customer vehicles while they’re being serviced without committing to permanent charging infrastructure in individual service bays.
Rental Operations
Keep rental EVs charged and ready for the next customer by bringing DC fast charging directly to the vehicles that need it.
Key Features
| Feature | Description |
|---|---|
| Mobile, Shop-Ready Design | Heavy-duty casters and a built-in handle make it easy to move the charger between service bays. No fixed charging infrastructure required. |
| Quick-Connect Power Cable | Integrated cable system allows for fast, convenient hookup when you need to begin charging. |
| Multiple Power Options | Choose from 20kW, 30kW, or 40kW DC fast charging configurations to match your shop's charging requirements. |
| Compact Form Factor | A small footprint of just 25.59" x 11.02" x 14.5" makes DYNAMO well suited for space-constrained service bays. |
| Smart Authentication | Touchscreen interface with password and QR code authentication helps provide controlled access to the charger. |
| All-Weather Rated | The IP54-rated enclosure is designed to operate in temperatures ranging from -13°F to 131°F. |
Technical Specifications
DYNAMO Spec Sheet
Every DYNAMO unit ships to the same specification, providing consistent performance without surprise variants.
Charging
- Charging Type: DC Fast Charging
- Power Options: 20kW / 30kW / 40kW
- Connectors: CCS1 + NACS
Electrical
- AC Supply: Three-Phase, 5 Wire
- Frequency: 60Hz ±3Hz
- Cooling: Air-Cooled
Physical
- Dimensions: 25.59" x 11.02" x 14.5"
- Mobility: Heavy-duty casters
- IP Rating: IP54
Interface
- Display: Touchscreen
- Authentication: Password, QR Code
- Operating Temperature: -13°F to 131°F
Portable DC Fast Charging for the Modern Shop
The DYNAMO Portable Shop DC Fast Charger gives automotive professionals the flexibility of mobile EV charging without permanent installation. With power options up to 40kW, CCS1 + NACS compatibility, heavy-duty mobility, smart authentication, and an all-weather-rated enclosure, DYNAMO is designed to bring DC fast charging directly to the vehicle and service bay where it’s needed.
