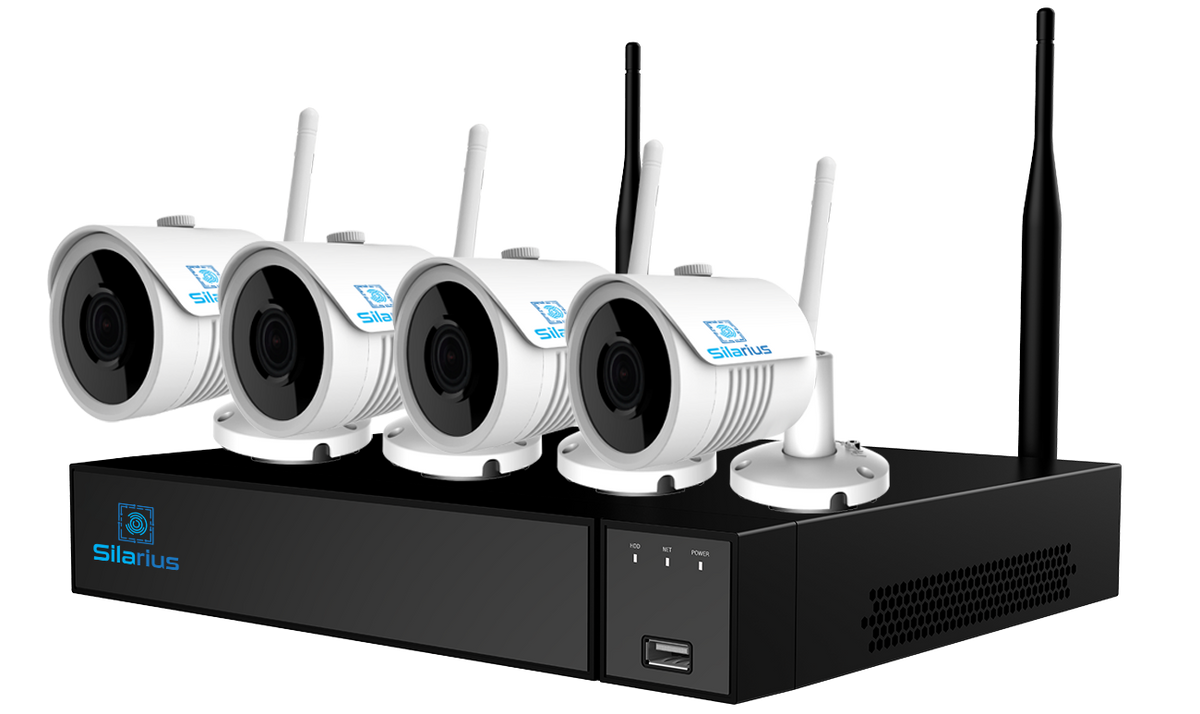

Silarius SIL-4CHNVRWIFI8MPKIT 4CH 8MP WiFi Security Camera System – NDAA Compliant 4K Surveillance Kit

Experience high-resolution security monitoring with the Silarius SIL-4CHNVRWIFI8MPKIT AI 4CH 8MP WiFi Security Camera System, an NDAA-compliant 4K surveillance kit designed for dependable video security in residential and commercial environments.

This easy-to-use 4-channel WiFi security system combines 8MP 4K video resolution, advanced motion detection, AI humanoid detection, infrared night vision, and wireless network connectivity to provide detailed surveillance without the complexity of extensive cabling. The system includes four 4K 8MP mini bullet cameras and a WiFi NVR for a complete surveillance solution.

With high-resolution imaging and a 3.6mm fixed lens, the Silarius SIL-4CHNVRWIFI8MPKIT is designed to deliver clear video recording while providing convenient wireless connectivity and flexible installation options.

Key Features

• NDAA Compliant: Designed as an NDAA-compliant security surveillance solution.
• 4K Ultra HD Resolution: Cameras support up to 8MP (4K) resolution for detailed video surveillance.
• 4-Channel WiFi Security System: Includes a 4-channel NVR and four 4K 8MP mini bullet cameras.
• 3.6mm Fixed Lens: Provides a fixed-focus lens configuration for consistent surveillance coverage.
• Advanced Motion Detection: Supports motion detection for enhanced security monitoring.
• AI Humanoid Detection: Intelligent analysis helps identify humanoid activity.
• Infrared Night Vision: Two 42μ infrared LEDs provide night vision up to 25 meters.
• Day/Night Imaging: Automatic Color/Black & White switching with IR-CUT technology.
• WDR & BLC: Supports Wide Dynamic Range and Backlight Compensation for improved image handling.
• Wireless Connectivity: Supports WiFi using IEEE 802.11b/g/n.
• Long WiFi Range: Up to 300 meters without obstacles according to the camera specifications; the package listing states up to 350 meters without obstacles.
• H.264/H.265 Compression: Supports multiple video compression formats for efficient recording and storage.
• IP67 Metal Housing: Durable metal camera housing with IP67 protection.
• Anti-Cut Bracket: Cameras include an anti-cut bracket for added installation security.
• Remote Playback: Supports remote synchronized playback.
• Cloud/P2P Support: NVR supports cloud access through P2P.
• Smartphone Support: Compatible with iPhone, iPad, Android, and Android Pad.
• Up to 8TB Storage: NVR supports one 2.5"/3.5" SATA hard drive with capacity up to 8TB.
• Digital Zoom: NVR supports digital zoom for detailed viewing.
• 4-Channel Motion Detection: Provides 396 motion-detection zones across four channels.
• Face Comparison: Supports 1-channel video-stream face comparison with one face database containing up to 10 face images.

Complete 4K WiFi Security Camera Package

The Silarius SIL-4CHNVRWIFI8MPKIT provides the essential components needed to build a 4-channel wireless surveillance system.

Package Includes

• 1 x NVR
• 4 x 4K 8MP Mini Bullet Cameras
• 1 x 1m Network Cable
• 1 x USB 2.0 Mouse
• 1 x DC 12V 2A Adapter for WiFi NVR
• 4 x DC 12V 0.5A Adapters for WiFi IP Cameras
• System Weight: 5.3 kg/set
• Camera Model: SIL-4CHNVRWIFI8MPKIT

Camera Specifications

Image & Video

• Image Sensor: 1/2.5" High-Resolution CMOS Sensor
• Resolution: 8MP (4K)
• Effective Pixels: 2608(H) × 1952(V)
• Compression: H.264/H.265
• TV System: PAL/NTSC
• Electronic Shutter: Auto
• PAL Shutter Time: 1/25–1/10000 sec
• NTSC Shutter Time: 1/25–1/10000 sec
• S/N Ratio: ≥52dB
• Scanning System: Progressive
• Video Output: Wireless network
• Reset Button: Yes

Lens & Night Vision

• Focus Length: 3.6mm
• Focus Control: Fixed
• Lens Type: Fixed
• Pixels: 8M pixels
• Infrared LEDs: 42μ × 2PCS
• Infrared Distance: 25m
• IR Status: Automatic control
• IR Power: On/automatic control

Camera Network & Wireless Connectivity

The cameras are designed for wireless network operation while also providing Ethernet connectivity.

• Ethernet: Yes
• Protocols: TCP/IP, ICMP, RTP, RTSP, RTCP
• ONVIF: No
• P2P: No
• PoE: No
• Wireless Antenna: 3dBi
• Hotspot: No
• WiFi: IEEE 802.11b/g/n
• WiFi Range: Up to 300m without obstacles

Main Stream

• Main Stream 1: 3072 × 2592 @ 1–15fps
  • Default resolution: 3072 × 2592
  • Frame rate: 15fps
  • Bit rate: 2.3Mbps
• Main Stream 2: 2592 × 1944 @ 1–15fps
  • Default resolution: 2592 × 1944
  • Frame rate: 15fps
  • Bit rate: 1.8Mbps
• Main Stream 3: /

Sub Stream

• Sub Stream 1: 1280 × 720 @ 1–15fps
  • Default frame rate: 15fps
  • Bit rate: 1Mbps
• Sub Stream 2: /
• Sub Stream 3: /
• Tri Stream: /
• IE Browser: /
• Smart Phone: /

AI & Intelligent Security Features

The camera system incorporates intelligent analysis functions to help enhance surveillance capabilities.

• Intelligent Analysis: Humanoid Detection
• Motion Detection: Supported
• Privacy Masking: 3 rectangular zones
• Recording Mode: NVR

Camera Image Features

The cameras support multiple image adjustment and enhancement functions for different surveillance conditions.

• Day/Night: Color/Black & White with IR-CUT
• Image Configuration: Saturation, Brightness, Contrast, Sharpness, Mirror, White Balance, FLK/Flicker Control
• Corridor Pattern: /
• ROI: /
• Defog Mode: /
• BLC: Yes
• HDR: /
• WDR: Yes

Camera Interfaces

• Audio: /
• Alarm: /
• SD Card Slot: /
• RS485: /

Camera Construction & Environmental Specifications

The cameras feature a durable metal housing designed for indoor and outdoor surveillance applications.

• Housing: Metal
• Weather Protection: IP67
• Anti-Cut Bracket: Yes
• IR Cut Filter: Yes
• Operating Temperature: -10°C to +50°C
• Operating Humidity: RH95% Max
• Storage Temperature: -20°C to +60°C
• Storage Humidity: RH95% Max
• Power Source: DC12V ±10%, 500mA
• Dimensions: 157(W) × 70(H) × 66(D)mm
• Camera Weight: 650g

NVR Specifications

The included NVR is powered by an ARM Cortex A7 Quad-Core Processor and runs an Embedded LINUX operating system for reliable surveillance management.

NVR Video

• Video Input: 4CH
• Supported Input Resolutions: 3072 × 2592, 2592 × 1944, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720, etc.
• Video Output: 1 VGA, 1 HD

NVR Audio

• Audio Input: /
• Audio Output: 1 RCA port, linear, 1kΩ
• Audio Bit Rate: 64kbps
• Audio Compression: Standard G711u, G711a, G726

NVR Alarm & Motion Detection

The NVR provides comprehensive motion detection and event-triggering functions.

• Sensor Input: No
• Alarm Output: No
• Motion Detection: 4 channels
• Motion Detection Zones: 396 zones (22 × 18)
• Trigger Events: Recording, Email, FTP, Snapshot, Buzzer, Screen Tips, Alarm Output

NVR AI Function

• Face Comparison: 1-channel video stream face comparison
• Face Database: 1 database
• Face Images: Up to 10 face images

Display & Monitoring

The NVR supports multiple display resolutions and viewing configurations.

HD1 Resolution

• 1920 × 1080 @ 60Hz
• 1280 × 1024 @ 60Hz
• 1280 × 720 @ 60Hz
• 1024 × 768 @ 60Hz

VGA Resolution

• 1920 × 1080 @ 60Hz
• 1280 × 1024 @ 60Hz
• 1280 × 720 @ 60Hz
• 1024 × 768 @ 60Hz

Display Split

• 4CH × D1
• 4CH × 1080P @ 15fps
• 4CH × 1440 × 1080 @ 15fps
• 1CH × 1080P
• 1CH × 3MP
• 1CH × 4MP
• 1CH × 5MP

Additional Display Features:

• Digital Zoom: Yes
• OSD: Camera Title, Time, Recording, Motion Detection, Alarm

NVR Recording

The NVR supports multiple compression formats and recording resolutions for flexible surveillance storage.

Video Compression

• H.264
• H.265
• H.264+
• H.265+

Supported Recording Resolutions

• 8MP: 3072 × 2592
• 5MP: 2592 × 1944
• 4MP: 2688 × 1520
• 3MP: 2048 × 1536
• 1080P: 1920 × 1080
• 960P: 1280 × 960
• 720P: 1280 × 720
• D1: 720 × 576 / 720 × 480

PAL Recording Rates

• 8MP @ 4 × 15fps
• 5MP @ 4 × 25fps
• 4MP @ 4 × 25fps
• 3MP @ 4 × 25fps
• 1080P @ 4 × 25fps
• 960P @ 4 × 25fps
• 720P @ 4 × 25fps
• D1 @ 4 × 25fps

NTSC Recording Rates

• 8MP @ 4 × 15fps
• 5MP @ 4 × 30fps
• 4MP @ 4 × 30fps
• 3MP @ 4 × 30fps
• 1080P @ 4 × 30fps
• 960P @ 4 × 30fps
• 720P @ 4 × 30fps
• D1 @ 4 × 30fps

Recording Modes

• Manual
• Timer
• Motion Detection
• Smart Alarm

Playback & Backup

The Silarius NVR provides multiple playback and search options for reviewing recorded security footage.

Local Synchronized Playback

• 1CH 8MP @ 15fps
• 1CH 5MP @ 30fps
• 1CH 4MP @ 30fps
• 2CH 3M @ 30fps
• 4CH 1080P @ 20fps
• 4CH 960P @ 30fps
• 4CH 720P @ 30fps

Decode Capability

• 4CH 1080P @ 20fps

Playback Features

• Remote synchronized playback: Yes
• Search by All, Channel, Manual, Time, Date, Motion Detection
• Event Alarm playback
• Play
• Pause
• Stop
• Rewind
• Fast Play
• Slow Play
• Full Screen
• Frame Play
• Frame Rewind
• Digital Zoom

NVR Network Connectivity

The NVR includes wired Ethernet connectivity and multiple network functions for remote access and system management.

• Network Interface: 1 × RJ45 10M/100M Adaptive Ethernet Interface
• Incoming Bandwidth: 60MB
• Network Functions: TCP/CP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP, P2P
• ONVIF Version: Supports ONVIF 2.4
• Web Browsers: IE8–11, Google Chrome lower than Ver. 44, Firefox lower than Ver. 53
• CMS Software: Supports Windows 7, Windows 8, and Windows 10
• Cloud Support/P2P: Yes
• Smartphone Compatibility: iPhone, iPad, Android, Android Pad
• PoE: /
• WiFi Support: Yes
• WiFi Range: Up to 300m without obstacles

Storage Capacity

The NVR supports a single SATA hard drive for local video storage.

• Storage Interface: 1 SATA hard disk interface
• Drive Compatibility: 2.5"/3.5" SATA
• Maximum Capacity: Up to 8TB
• eSATA: /

NVR General Specifications

• Operating System: Embedded LINUX
• Processor: ARM Cortex A7 Quad-Core
• Languages: Traditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek, Vietnamese
• USB: 1 × USB 2.0 interface
• Power Supply: DC12V/2A
• Working Environment: -10°C to 55°C / 10–90%
• Dimensions: 260 × 215 × 43mm (W × D × H)
• Weight: 2.0kg without HDD

Reliable 4K WiFi Surveillance for Home or Business

The Silarius SIL-4CHNVRWIFI8MPKIT AI 4CH 8MP WiFi Security Camera Kit combines 4K 8MP imaging, wireless connectivity, AI humanoid detection, motion detection, infrared night vision, IP67 camera protection, flexible recording modes, remote playback, cloud/P2P functionality, and expandable storage in one complete surveillance package.

Designed for both residential and commercial security applications, this NDAA-compliant 4-channel WiFi surveillance system offers a convenient way to monitor multiple areas while maintaining high-resolution video quality and advanced NVR recording capabilities.

Software, Manuals & Firmware

Download the Silarius IP Tool and Scanner, viewing software, manuals, and firmware from the official Silarius Download Center.
